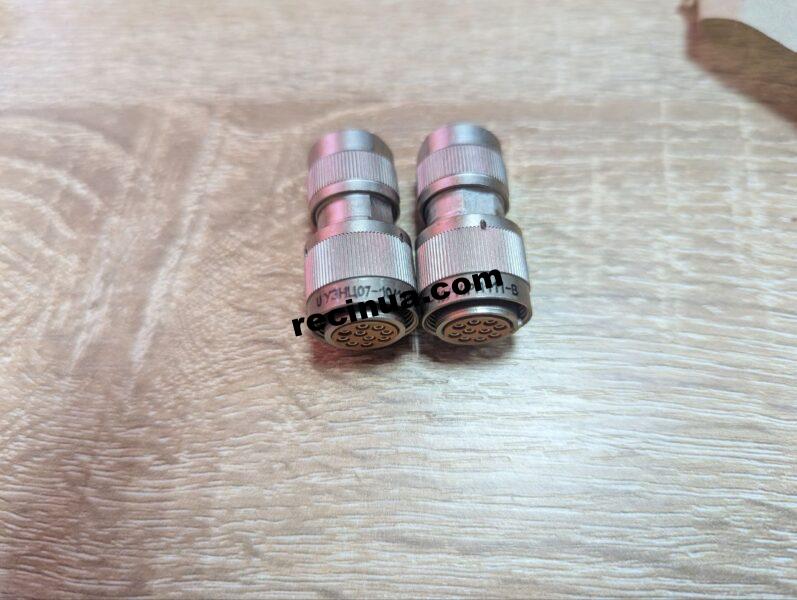

A sample connector for the UZNTs07-10/14RP111-V Connector is shown in the photo.
Do you have any questions regarding the selection of connectors? You can always contact the store consultants for help. We will help you select all the necessary components at affordable prices.
Connector 2RMT22KPN10SH1A1V connects to the following connectors:
2RMT22B10G1A1V – block socket
2RMT22BPN10G1A1V – block socket
2RMT22BPE10G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RM22KUN10SH1A1 or 2RMT22KUN10SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) The letter “Sh” – in the marking of the connector means that the plug is plugged (“Sh” – abbreviated from the word “pin”).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KUN10SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPE10SH1A1 or 2RMT22KPE10SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPE10SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPN10G1A1 or 2RMT22KPN10G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPN10G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPN10SH1A1, 2RMT22KPN10SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “10” after the letter “N” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPN10SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22BPE10G1A1 or 2RMT22BPE10G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “10” after the letter “E” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22BPE10G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22BPE10SH1A1 or 2RMT22BPE10SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22BPE10SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT22B10G1V1VB connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2PMT22B10SH1V1VB connects to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RM22B10SH1V1V or 2RMT22B10SH1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “10” after the letter “B” indicates the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT22B10SH1V1VB
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KUE10G1V1LV, 2RMT22KUE10G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT22KUE10G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KUN10G1V1LV or 2RMT22KUN10G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
4) Number “10” after the letter “N” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
12) The letter “L” connector with the left thread.
13) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT22KUN10G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPE10G1V1LV or 2RMT22KPE10G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
4) Number “10” after the letter “E” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) The letter “L” connector with the left thread.
10) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT22KPE10G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPN10G1V1LV, 2RMT22KPN10G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT22KPN10G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPN10G1V1 or 2RMT22KPN10G1V1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) “K” – indicates that the cable connector (straight or angled body, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “10” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “B2.1” according to GOST 15150-69 or “B” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT22KPN10G1V1V:
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RMT22KPN10SH1V1V connects to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RM22KPN10SH1V1 or 2RMT22KPN10SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “10” after the letter “N” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT22KPN10SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM22BPE10G1V1, 2RMT22BPE10G1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “10” after the letter “E” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT22BPE10G1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMT22BPE10G1V1V connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RM22BPN10G1V1 or 2RMT22BPN10G1V1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “10” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “B2.1” according to GOST 15150-69 or “B” according to GOST “B 20.39.404-81”.
Technical characteristics 2RM22BPN10G1V1V:
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM22BPN10SH1V1 or 2RMT22BPN10SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “10” after the letter “N” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT22BPN10SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
The 2RMT22KUN10G1A1V connector is connected to the following connectors:
2RMT22B10Sh1A1V – block plug
2RMT22BPN10SH1A1V – block plug
2RMT22BPE10SH1A1V – plug forks
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1A1LV or 2RMT22KPN10G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KPN10G1A1V connects to the following connectors:
2RMT22B10Sh1A1V – block plug
2RMT22BPN10SH1A1V – block plug
2RMT22BPE10SH1A1V – plug forks
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1A1LV or 2RMT22KPN10G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KPE10G1A1V is connected to the following connectors:
2RMT22B10Sh1A1V – block plug
2RMT22BPN10SH1A1V – block plug
2RMT22BPE10SH1A1V – plug forks
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes
a 2RM22KPN10G1A1LV or 2RMT22KPN10G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KUN10Sh1A1V connects to the following connectors:
2RMT22B10G1A1V – block socket
2RMT22BPN10G1A1V – block socket
2RMT22BPE10G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RM22BPE10G1A1, 2RMT22BPE10G1A1V is connected to the following connectors:
2RMT22KPN10SH1A1V– cable plug
2RMT22KPE10SH1A1V – cable plug
2RMT22KUN10SH1A1V – cable plug
2RMT22KUE10SH1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22B10SH1A1V is connected to the following connectors:
2RMT22KPN10G1A1V – cable socket
2RMT22KPE10G1A1V – cable socket
2RMT22KUN10G1A1V – cable socket
2RMT22KUE10G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200
Connector 2RM22KPN10G1V1LV or 2RMT22KPN10G1V1LV is connected to the following connector:
Sealed connector 2RMGP22B10SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KU10G1V1V connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1V1LV or 2RMT22KPN10G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KUN10G1V1V connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1V1LV or 2RMT22KPN10G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KUN10SH1V1V connects to the following connectors:
2RMT22B10G1V1V – block socket
2RMT22BPN10G1V1V – block socket
2RMT22BPE10G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2PMT22KPE10G1V1V connects to the following connectors:
2RMT22B10SH1V1V – block socket
2RMT22BPN10SH1V1V – block socket
2RMT22BPE10SH1V1V – block socket
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1V1LV or 2RMT22KPN10G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22KPE10SH1V1V connects to the following connectors:
2RMT22B10G1V1V – block socket
2RMT22BPN10G1V1V – block socket
2RMT22BPE10G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22BPE10SH1A1V is connected to the following connectors:
2RMT22KPN10G1A1V – cable socket
2RMT22KPE10G1A1V – cable socket
2RMT22KUN10G1A1V – cable socket
2RMT22KUE10G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22BPE10SH1V1V connects to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22BPN10SH1A1V connects to the following connectors:
2RMT22KPN10G1A1V – cable socket
2RMT22KPE10G1A1V – cable socket
2RMT22KUN10G1A1V – cable socket
2RMT22KUE10G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2PMT22BPN10SH1V1V connects to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22B10G1A1V is connected to the following connectors:
2RMT22KPN10SH1A1V– cable plug
2RMT22KPE10SH1A1V – cable plug
2RMT22KUN10SH1A1V – cable plug
2RMT22KUE10SH1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200
2RMT22B10G1V1V connector connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT22B10SH1V1V connects to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
You can buy the wire for soldering connectors BPVL, BPVLe, PTL-200, PTLe-200.
Connector 2RMT24B19SH1V1V connects to the following connectors:
2RMT24KPN19G1V1V – cable socket
2RMT24KPE19G1V1V – cable socket
2RMT24KUN19G1V1V – cable socket
2RMT24KUE19G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM24B19SH1V1 or 2RMT24B19SH1V1V general technical characteristics.
1) 2PM or 2PMT – type of connector. 2PM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “24” is the nominal diameter of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) The number “19” after the letter “B” indicates the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“Ш” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “V” after the number indicates the type of coating contacts – silver.
8) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
9) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “B” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT24B19SH1V1V
Current load on a single contact = 5 Amps.
The total load on the connector = 80 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage 560 Volt = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
The 2RMT18KUE7G1A1V connector is connected to the following connectors:
2RMT18B7SH1A1V – block socket
2RMT18BPN7SH1A1V – block socket
2RMT18BPE7SH1A1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes
a 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMT18KUN7G1A1V connector is connected to the following connectors:
2RMT18B7SH1A1V – block socket
2RMT18BPN7SH1A1V – block socket
2RMT18BPE7SH1A1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes
a 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPE7G1A1V is connected to the following connectors:
2RMT18B7SH1A1V – block socket
2RMT18BPN7SH1A1V – block socket
2RMT18BPE7SH1A1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes
a 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMGP42B50SH2E2 connector is connected to the following connectors:
Sealed connector – 2RMT42KPE50G2V1V
Sealed connector – 2RMT42KPN50G2V1V
Sealed connector – 2RMT42KUN50G2V1V
Sealed connector – 2RMT42KUN50G2V1V
Sealed connector – 2RMT42KUN50G2V1LV
Sealed connector – 2RMT42KPE50G2V1LV
Sealed connector – 2RMT42KPN50G2V1LV
Sealed connector – 2RMT42KUE50G2V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP42B50SH2E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “42” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “50” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “2” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP42B50SH2E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP36B22SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT36KPE22G1V1V
Sealed connector – 2RMT36KPN22G1V1V
Sealed connector – 2RMT36KUN22G1V1V
Sealed connector – 2RMT36KUN22G1V1V
Sealed connector – 2RMT36KUN22G1V1LV
Sealed connector – 2RMT36KPE22G1V1LV
Sealed connector – 2RMT36KPN22G1V1LV
Sealed connector – 2RMT36KUE22G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP36B22SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “36” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “22” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP36B22SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2RMGP42B30SH2E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “42” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “30” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “2” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP42B30SH2E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP42B30SH2E2 connector is connected to the following connectors:
Sealed connector – 2RMT42KPE30G2V1V
Sealed connector – 2RMT42KPN30G2V1V
Sealed connector – 2RMT42KUN30G2V1V
Sealed connector – 2RMT42KUN30G2V1V
Sealed connector – 2RMT42KUN30G2V1LV
Sealed connector – 2RMT42KPE30G2V1LV
Sealed connector – 2RMT42KPN30G2V1LV
Sealed connector – 2RMT42KUE30G2V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KUN7G1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes a 2RM18KPN7G1V1LV or 2RMT18KPN7G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KPE7SH1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPN7G1V1V connects to the following connectors:
2RMT18B7SH1V1V— plug cable
2RMT18BPN7SH1V1V — plug cable
2RMT18BPE7SH1V1V — plug cable
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes a 2RM18KPN7G1V1LV or 2RMT18KPN7G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPN7SH1V1V connects to the following connectors:
2RMT18B7G1V1V – cable socket
2RMT18BPN7G1V1V – cable socket
2RMT18BPE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPN7G1V1V connects to the following connectors:
2RМТ18КPN7SH1V1V — plug cable
2RМТ18КPE7SH1V1V — plug cable
2RМТ18КUN7SH1V1V — plug cable
2RМТ18КUE7SH1V1V — plug cable
We can buy wire for soldering connectors BPVL, BPVLe, PTL–200 and PTLe-200.
Connector 2PMT18BPN7Sh1V1V connects to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMGP33B20SH4E2 connector is connected to the following connectors:
Sealed connector – 2RMT33KPE20G4V1V
Sealed connector – 2RMT33KPN20G4V1V
Sealed connector – 2RMT33KUN20G4V1V
Sealed connector – 2RMT33KUN20G4V1V
Sealed connector – 2RMT33KUN20G4V1LV
Sealed connector – 2RMT33KPE20G4V1LV
Sealed connector – 2RMT33KPN20G4V1LV
Sealed connector – 2RMT33KUE20G4V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP33B20SH4E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “33” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “20” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “4” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP33B20SH4E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2RM22KUN10G1A1 or 2RMT22KUN10G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KUN10G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPE10G1A1 or 2RMT22KPE10G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPE10G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT22KPN10G1V1V connects to the following connectors:
2RМТ22КPN10SH1V1V — plug cable
2RМТ22КPE10SH1V1V — plug cable
2RМТ22КUN10SH1V1V — plug cable
2RМТ22КUE10SH1V1V — plug cable
Sealed connector 2RMG22B10SH1E2
Sealed connector 2RMG22B10SH1Е2B
Sealed connector 2RMG22BPN10SH1E2
Sealed connector 2RMG22BPE10SH1E2
The 2RMGP22B10SH1E2 sealed-through connector also includes a 2RM22KPN10G1V1LV or 2RMT22KPN10G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT22BPN10G1A1V connects to the following connectors:
2RMT22KPN10SH1A1V – cable plug
2RMT22KPE10SH1A1V – cable plug
2RMT22KUN10SH1A1V – cable plug
2RMT22KUE10SH1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM22BPN10G1A1 or 2RMT22BPN10G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22BPN10G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22BPN10SH1A1 or 2RMT22BPN10SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT22BPN10SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22B10G1A1 or 2RMT22B10G1A1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) The number “10” after the letter “B” denotes the number of contacts in the connector.
5) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – shortened from the word “socket” socket).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
7) The letter “A” after the number indicates the type of contact coverage – gold.
8) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
9) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT22B10G1A1V
The current load on a single contact = 7 Ampere.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM22B10SH1A1 or 2RMT22B10SH1A1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) The next digit “10” indicates the number of contacts.
5) The letter “SH” – in the marking of the connector indicates that the connector plug (“Sh” – abbreviated from the word pin).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
7) The letter “A” after the number indicates the type of contact coverage – gold.
8) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
9) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT22B10SH1A1V
The current load on a single contact = 7 Ampere.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RM22B10G1V1B or 2RMT22B10G1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “10” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT22B10G1V1VB
Current load per single contact = 7 Amps.
Total load on the connector =56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT22KUE10G1V1LV connects to the following connectors:
Sealed connector 2RMGP22B10SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMT22KUN10G1V1LV connector is connected to the following connectors:
Sealed connector 2RMGP22B10SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT22KPE10G1V1LV connects to the following connectors:
Sealed connector 2RMGP22B10SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM22KUE10G1V1, 2RMT22KUE10G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KUE10G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT22KUE10SH1V1V connects to the following connectors:
2RMT22B10G1V1V – block socket
2RMT22BPN10G1V1V – block socket
2RMT22BPE10G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM22KUE10SH1V1, 2RMT22KUE10SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KUE10SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KUN10G1V1 or 2RMT22KUN10G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KUN10G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT18KUN7SH1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM22KUN10SH1V1 or 2RMT22KUN10SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed.
2) Number “22” is the nominal diameter of connector.
3) Letter “K” — indicates that connector is of cable type (straight or angle body frame, it is impossible to fix on the panel).
4) Letter “U” means that a kind of nozzle is angular.
5) Letter “N” means that the nut on the nozzle will not be shielded.
6) Number “10” after the letter “N” indicates the number of contacts in the connector.
7) Letters “SH” indicate plug connector (“SH” is indication of plug).
8) Number “1” indicates that diameter of the contacts in this type of connector is 1 mm.
9) Letter “V” after the number indicates that the type of contact coating is silver.
10) Number “1” at the end of the connector’s name indicates that thermal resistance of contacts is 100°C.
11) Letter “V” at the end of the connector’s name indicates that connector is made according to the Standard of Climatic Performance “V2.1” according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) “20.39.404-81″.
Technical Specifications of 2RМТ22KUN10SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPE10G1V1 or 2RMT22KPE10G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “10” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPE10G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22KPE10SH1V1 or 2RMT22KPE10SH1V1V general specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “10” after the letter “E” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“SH” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22KPE10SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMG22B10SH1E2B general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“10” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 °.
“B” – means that the body is necessarily block, since there is no left-hand thread.
Technical characteristics 2RMG22B10SH1E2B:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG22B10SH1E2B general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“10” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 °.
Technical characteristics 2RMG22B10SH1E2B:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG22BPN10SH1E2 general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“N” – the nut on the nozzle will not be shielded.
“10” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 °.
Technical characteristics 2RMG22BPN10SH1E2:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG22BPE10SH1E2 general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“E” – the nut on the nozzle will be shielded.
“10” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG22BPE10SH1E2:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG14B4SH1E2 general specifications.
“2RMG” – the type of this connector.
“14” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Specifications2RMG14B4SH1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG14BPN4SH1E2 general specifications.
“2RMG” – the type of this connector.
“14” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“N” – the nut on the nozzle will not be shielded.
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG14BPN4SH1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2RM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2RMG24BPE19SH1E2 general specifications.
“2RMG” – the type of this connector.
“24” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“E” – the nut on the nozzle will be shielded.
“19” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2RMG connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG24BPE19SH1E2:
Current load on a single contact = 6 Ampere.
The total load on the connector = 63 amperes.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG24B19SH1E2B connector is connected to the following connectors:
2RMT24KPN19G1V1V – cable socket
2RMT24KPE19G1V1V – cable socket
2RMT24KUN19G1V1V – cable socket
2RMT24KUE19G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM22BPE10SH1V1 or 2RMT22BPE10SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will not be shielded
6) The number “10” after the letter “B” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT22BPE10SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM22B10G1V1 or 2RMT22B10G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “10” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RМТ22B10G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 56 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM22B10SH1V1 or 2RMT22B10SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “22” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “10” after the letter “B” indicates the number of contacts in the connector.
5) Letter “SH” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT22B10SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 58 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
The 2RMG24BPE19SH1E2 connector is connected to the following connectors:
2RMT24KPN19G1V1V – cable socket
2RMT24KPE19G1V1V – cable socket
2RMT24KUN19G1V1V – cable socket
2RMT24KUE19G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG22B4SH3E2 connector is connected to the following connectors:
2RMT22KPN4G3V1V – cable socket
2RMT22KPE4G3V1V – cable socket
2RMT22KUN4G3V1V – cable socket
2RMT22KUE4G3V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG22B4SH3E2 general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“3” indicates the type of combination of contacts in the 2RMG connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG22B4SH3E2:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG22BPN4SH3E2 connector is connected to the following connectors:
2RMT22KPN4G3V1V – cable socket
2RMT22KPE4G3V1V – cable socket
2RMT22KUN4G3V1V – cable socket
2RMT22KUE4G3V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG22BPN4SH3E2 general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“N” – the nut on the nozzle will not be shielded.
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“3” indicates the type of combination of contacts in the 2RMG connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG22BPN4SH3E2:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG22B4SH3E2B connector is connected to the following connectors:
2RMT22KPN4G3V1V – cable socket
2RMT22KPE4G3V1V – cable socket
2RMT22KUN4G3V1V – cable socket
2RMT22KUE4G3V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG22B4SH3E2B general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“3” indicates the type of combination of contacts in the 2RMG connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
“B” – means that the body is necessarily block, since there is no left-hand thread.
Technical characteristics 2RMG22B4SH3E2B:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG22BPE4SH3E2 connector is connected to the following connectors:
2RMT22KPN4G3V1V – cable socket
2RMT22KPE4G3V1V – cable socket
2RMT22KUN4G3V1V – cable socket
2RMT22KUE4G3V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG22BPE4SHh3E2 general specifications.
“2RMG” – the type of this connector.
“22” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“E” – the nut on the nozzle will be shielded.
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“3” indicates the type of combination of contacts in the 2RMG connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG22BPE4SH3E2:
Current load on a single contact = 5 Amps.
The total load on the connector = 42 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG22B10SH1E2B connector is connected to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG22B10SH1E2 connector is connected to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KUE10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG22BPN10SH1E2 connector is connected to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KU10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG22BPE10SH1E2 connector is connected to the following connectors:
2RMT22KPN10G1V1V – cable socket
2RMT22KPE10G1V1V – cable socket
2RMT22KUN10G1V1V – cable socket
2RMT22KU10G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG14B4SH1E2 connector is connected to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG14BPN4SH1E2 connector is connected to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG14BPE4SH1E2 general specifications.
“2RMG” – the type of this connector.
“14” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“P” – a type of socket on the connector – straight.
“E” – the nut on the nozzle will be shielded.
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG14BPE4SH1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMGP39B45SH2E2 connector is connected to the following connectors:
Sealed connector – 2RMT39KPE45G2V1V
Sealed connector – 2RMT39KPN45G2V1V
Sealed connector – 2RMT39KUN45G2V1V
Sealed connector – 2RMT39KUN45G2V1V
Sealed connector – 2RMT39KUN45G2V1LV
Sealed connector – 2RMT39KPE45G2V1LV
Sealed connector – 2RMT39KPN45G2V1LV
Sealed connector – 2RMT39KUE45G2V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP39B45SH2E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “39” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “45” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “2” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP3B45SH2E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2RMGP36B20SH2E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “36” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “20” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “2” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP36B20SH2E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP36B20SH2E2 connector is connected to the following connectors:
Sealed connector – 2RMT36KPE20G2V1V
Sealed connector – 2RMT36KPN20G2V1V
Sealed connector – 2RMT36KUN20G2V1V
Sealed connector – 2RMT36KUN20G2V1V
Sealed connector – 2RMT36KUN20G2V1LV
Sealed connector – 2RMT36KPE20G2V1LV
Sealed connector – 2RMT36KPN20G2V1LV
Sealed connector – 2RMT36KUE20G2V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMGP33B20SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT33KPE20G1V1V
Sealed connector – 2RMT33KPN20G1V1V
Sealed connector – 2RMT33KUN20G1V1V
Sealed connector – 2RMT33KUN20G1V1V
Sealed connector – 2RMT33KUN20G1V1LV
Sealed connector – 2RMT33KPE20G1V1LV
Sealed connector – 2RMT33KPN20G1V1LV
Sealed connector – 2RMT33KUE20G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP33B20SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “33” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “20” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP33B20SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP30B32SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT30KPE32G1V1V
Sealed connector – 2RMT30KPN32G1V1V
Sealed connector – 2RMT30KUN32G1V1V
Sealed connector – 2RMT30KUN32G1V1V
Sealed connector – 2RMT30KUN32G1V1LV
Sealed connector – 2RMT30KPE32G1V1LV
Sealed connector – 2RMT30KPN32G1V1LV
Sealed connector – 2RMT30KUE32G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP30B32SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “30” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “32” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP30B32SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP27B24SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT27KPE24G1V1V
Sealed connector – 2RMT27KPN24G1V1V
Sealed connector – 2RMT27KUN24G1V1V
Sealed connector – 2RMT27KUN24G1V1V
Sealed connector – 2RMT27KUN24G1V1LV
Sealed connector – 2RMT27KPE24G1V1LV
Sealed connector – 2RMT27KPN24G1V1LV
Sealed connector – 2RMT27KUE24G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP27B24SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “27” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “24” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP27B24SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP27B7SH2E2 connector is connected to the following connectors:
Sealed connector – 2RMT27KPE7G2V1V
Sealed connector – 2RMT27KPN7G2V1V
Sealed connector – 2RMT27KUN7G2V1V
Sealed connector – 2RMT27KUN7G2V1V
Sealed connector – 2RMT27KUN7G2V1LV
Sealed connector – 2RMT27KPE7G2V1LV
Sealed connector – 2RMT27KPN7G2V1LV
Sealed connector – 2RMT27KUE7G2V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP27B7SH2E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “27” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “7” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “2” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP27B7SH2E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP24B19SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT24KPE19G1V1V
Sealed connector – 2RMT24KPN19G1V1V
Sealed connector – 2RMT24KUN19G1V1V
Sealed connector – 2RMT24KUN19G1V1V
Sealed connector – 2RMT24KUN19G1V1LV
Sealed connector – 2RMT24KPE19G1V1LV
Sealed connector – 2RMT24KPN19G1V1LV
Sealed connector – 2RMT24KUE19G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP24B19SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “24” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “19” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP24B19SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP22B4SH3E2 connector is connected to the following connectors:
Sealed connector – 2RMT22KPE4G3V1V
Sealed connector – 2RMT22KPN4G3V1V
Sealed connector – 2RMT22KUN4G3V1V
Sealed connector – 2RMT22KUN4G3V1V
Sealed connector – 2RMT22KUN4G3V1LV
Sealed connector – 2RMT22KPE4G3V1LV
Sealed connector – 2RMT22KPN4G3V1LV
Sealed connector – 2RMT22KUE4G3V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP22B4SH3E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “4” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “3” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP22B4SH3E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
The 2RMGP22B10SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT22KPE10G1V1V
Sealed connector – 2RMT22KPN10G1V1V
Sealed connector – 2RMT22KUN10G1V1V
Sealed connector – 2RMT22KUN10G1V1V
Sealed connector – 2RMT22KUN10G1V1LV
Sealed connector – 2RMT22KPE10G1V1LV
Sealed connector – 2RMT22KPN10G1V1LV
Sealed connector – 2RMT22KUE10G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP22B10SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “22” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “10” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP22B10SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2PMT18B7G1A1VB connects to the following connectors:
2RMT18KPN7Sh1A1V – cable plug
2RMT18KPE7Sh1A1V – cable plug
2RMT18KUN7Sh1A1V – cable plug
2RMT18KUE7Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18B7G1V1VB connects to the following connectors:
2RМТ18КPN7SH1V1V — plug cable
2RМТ18КPE7SH1V1V — plug cable
2RМТ18КUN7SH1V1V — plug cable
2RМТ18КUE7SH1V1V — plug cable
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18B7Sh1V1VB connects to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KUE7G1A1LV connects to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KUE7G1V1LV connects to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMT18KUN7G1V1LV connector is connected to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector2RMT18KUN7G1A1LV connects to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPE7G1A1LV connects to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPE7G1V1LV connects to the following connectors:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM18KPN7G1V1LV or 2RMT18KPN7G1V1LV is connected to the following connector:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV is connected to the following connector:
Sealed connector 2RMGP18B7SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KU7G1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes a 2RM18KPN7G1V1LV or 2RMT18KPN7G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KUE7SH1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KUN7SH1A1V connects to the following connectors:
2RMT18B7G1A1V – block socket
2RMT18BPN7G1A1V – block socket
2RMT18BPE7G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KPE7G1V1V connects to the following connectors:
2RMT18B7G1V1V – block socket
2RMT18BPN7G1V1V – block socket
2RMT18BPE7G1V1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes a 2RM18KPN7G1V1LV or 2RMT18KPN7G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT18KPE7SH1A1V is connected to the following connectors:
2RMT18B7G1A1V – block socket
2RMT18BPN7G1A1V – block socket
2RMT18BPE7G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPN7G1A1V connects to the following connectors:
2RMT18B7G1A1V – block socket
2RMT18BPN7G1A1V – block socket
2RMT18BPE7G1A1V – block socket
Sealed connector 2RMG18B7SH1E2
Sealed connector 2RMG18B7SH1Е2B
Sealed connector 2RMG18BPN7SH1E2
Sealed connector 2RMG18BPE7SH1E2
The 2RMGP18B7SH1E2 sealed-through connector also includes a 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18KPN7SH1A1V connects to the following connectors:
2RMT18B7G1A1V – block socket
2RMT18BPN7G1A1V – block socket
2RMT18BPE7G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM18BPE7G1A1, 2RMT18BPE7G1A1V is connected to the following connectors:
2RMT18KPN7Sh1A1V – cable plug
2RMT18KPE7Sh1A1V – cable plug
2RMT18KUN7Sh1A1V – cable plug
2RMT18KUE7Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPE7G1V1V connects to the following connectors:
2RМТ18КPN7SH1V1V — plug cable
2RМТ18КPE7SH1V1V — plug cable
2RМТ18КUN7SH1V1V — plug cable
2RМТ18КUE7SH1V1V — plug cable
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPE7SH1A1V is connected to the following connectors:
2RMT18KPN7G1A1V – cable socket
2RMT18KPE7G1A1V – cable socket
2RMT18KUN7G1A1V – cable socket
2RMT18KUE7G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPE7SH1V1V connects to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPN7G1A1V connects to the following connectors:
2RMT18KPN7Sh1A1V – cable plug
2RMT18KPE7Sh1A1V – cable plug
2RMT18KUN7Sh1A1V – cable plug
2RMT18KUE7Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18BPN7Sh1A1V connects to the following connectors:
2RMT18KPN7G1A1V – cable socket
2RMT18KPE7G1A1V – cable socket
2RMT18KUN7G1A1V – cable socket
2RMT18KUE7G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT18B7G1A1V is connected to the following connectors:
2RMT18KPN7Sh1A1V – cable plug
2RMT18KPE7Sh1A1V – cable plug
2RMT18KUN7Sh1A1V – cable plug
2RMT18KUE7Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
2RMT18B7G1V1V connector connects to the following connectors:
2RМТ18КPN7SH1V1V — plug cable
2RМТ18КPE7SH1V1V — plug cable
2RМТ18КUN7SH1V1V — plug cable
2RМТ18КUE7SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
Connector 2RMT18B7SH1V1V connects to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
The 2RMG18B7SH1E2B connector is connected to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
“2RMG” – the type of this connector.
“18” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“7” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
“B” – means that the body is necessarily block, since there is no left-hand thread.
Technical characteristics 2RMG18B7SH1E2B
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG18BPN7SH1E2 connector is connected to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
1) “2RMG” – the type of this connector.
2) “18” – the conditional size of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) “7” – indicates the number of contacts.
7) “SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
8) “1” indicates the type of combination of contacts in the 2РМГ connector.
9) “E” – means that all contacts are nickel-plated.
10) “2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG18BPN7Sh1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG18BPE7SH1E2 connector is connected to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMG18B7SH1E2 connector is connected to the following connectors:
2RMT18KPN7G1V1V – cable socket
2RMT18KPE7G1V1V – cable socket
2RMT18KUN7G1V1V – cable socket
2RMT18KUE7G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
1) “2RMG” – the type of this connector.
2) “18” – the conditional size of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
6) “7” – indicates the number of contacts.
7) “SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
8) “1” indicates the type of combination of contacts in the 2РМГ connector.
9) “E” – means that all contacts are nickel-plated.
10) “2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG18B7SH1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
1) “2RMG” – the type of this connector.
2) “18” – the conditional size of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) “7” – indicates the number of contacts.
7) “SH” – in the marking of the connector indicates that the connector plug (“SH” – abbreviated from the word pin).
8) “1” indicates the type of combination of contacts in the 2РМГ connector.
9) “E” – means that all contacts are nickel-plated.
10) “2” – indicated that the heat resistance of each contact = 200 ° C.
Technical characteristics 2RMG18BPE7SH1E2
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
CONNECTOR 2RM18B7G1A1B or 2RMT18B7G1A1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT18B7G1A1VB
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18B7SH1A1B or 2RMT18B7SH1A1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) The letter “Sh” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “A” after the number indicates the type of contact coating – gold.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT18B7SH1A1VB
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUE7G1A1LV or 2RMT18KUE7G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) The number “7” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “V 20.39.404-81”.
Technical Specifications of 2RMT18KUE7G1A1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUN7G1A1LV or 2RMT18KUN7G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “7” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “V 20.39.404-81”.
Technical Specifications of 2RMT18KUN7G1A1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7G1A1LV or 2RMT18KPE7G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “7” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “V 20.39.404-81”.
Technical Specifications of 2RMT18KPE7G1A1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPN7G1A1LV or 2RMT18KPN7G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “7” after the letter “N” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “V 20.39.404-81”.
Technical Specifications of 2RMT18KPN7G1A1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
The 2RMT14KUE4G1A1V connector is connected to the following connectors:
2RMT14B4Sh1A1V – block plug
2RMT14BPN4Sh1A1V – block plug
2RMT14BPE4Sh1A1V – plug forks
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM18KUE7G1A1 or 2RMT18KUE7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUE7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUE7SH1A1 or 2RMT18KUE7SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “E” indicates the number of contacts in the connector.
7) The letter “Sh” – in the marking of the connector means that the plug is plugged (“Sh” – abbreviated from the word “pin”).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUE7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUN7G1A1 or 2RMT18KUN7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUN7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUN7SH1A1 or 2RMT18KUN7SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) The letter “Sh” – in the marking of the connector means that the plug is plugged (“Sh” – abbreviated from the word “pin”).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUN7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7G1A1 or 2RMT18KPE7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPE7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7SH1A1 or 2RMT18KPE7SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPE7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPN7G1A1 or 2RMT18KPN7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “7” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPN7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPN7SH1A1, 2RMT18KPN7SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPN7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18BPE7G1A1 or 2RMT18BPE7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18BPE7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18BPE7SH1A1 or 2RMT18BPE7SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18BPE7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18BPN7G1A1 or 2RMT18BPN7G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18BPN7G1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18BPN7Sh1A1 or 2RMT18BPN7Sh1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT18BPN7SH1A1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18B7G1V1B or 2RMT18B7G1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT18B7G1V1VB
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18B7SH1V1V or 2RMT18B7SH1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) The letter “Sh” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT18B7SH1V1VB
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUE7G1V1LV, 2RMT18KUE7G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT18KUE7G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUN7G1V1LV or 2RMT18KUN7G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
12) The letter “L” connector with the left thread.
13) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT18KUN7G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7G1V1LV or 2RMT18KPE7G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) The letter “L” connector with the left thread.
10) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT18KPE7G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPN7G1V1LV, 2RMT18KPN7G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “7” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT18KPN7G1V1LV
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUE7G1V1, 2RMT18KUE7G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUE7G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUE7SH1V1, 2RMT18KUE7SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “E” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUE7SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PM18KUN7G1V1 or 2RMT18KUN7G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KUN7G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KUN7SH1V1 or 2RMT18KUN7SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed.
2) Number “18” is the nominal diameter of connector.
3) Letter “K” — indicates that connector is of cable type (straight or angle body frame, it is impossible to fix on the panel).
4) Letter “U” means that a kind of nozzle is angular.
5) Letter “N” means that the nut on the nozzle will not be shielded.
6) Number “7” after the letter “N” indicates the number of contacts in the connector.
7) Letters “SH” indicate plug connector (“SH” is indication of plug).
8) Number “1” indicates that diameter of the contacts in this type of connector is 1 mm.
9) Letter “V” after the number indicates that the type of contact coating is silver.
10) Number “1” at the end of the connector’s name indicates that thermal resistance of contacts is 100°C.
11) Letter “V” at the end of the connector’s name indicates that connector is made according to the Standard of Climatic Performance “V2.1” according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) “20.39.404-81″.
Technical Specifications of 2RМТ18KUN7SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7G1V1 or 2RMT18KPE7G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “7” after the letter “E” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPE7G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPE7SH1V1 or 2RMT18KPE7SH1V1V general specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “7” after the letter “E” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“SH” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18KPE7SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18KPN7G1V1 or 2RMT18KPN7G1V1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) “K” – indicates that the cable connector (straight or angled body, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “B2.1” according to GOST 15150-69 or “B” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT18KPN7G1V1V:
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM18KPN7SH1V1 or 2RMT18KPN7SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT18KPN7SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM18BPE7G1V1, 2RMT18BPE7G1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “7” after the letter “V” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT18BPE7G1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG14B4SH1E2B connector is connected to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMG14B4SH1E2B general specifications.
“2RMG” – the type of this connector.
“14” – the conditional size of the connector.
“B” – indicates that the connector is block (instrument – bolted to the device).
“4” – indicates the number of contacts.
“SH” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
“1” indicates the type of combination of contacts in the 2РМГ connector.
“E” – means that all contacts are nickel-plated.
“2” – indicated that the heat resistance of each contact = 200 ° C.
“B” – means that the body is necessarily block, since there is no left-hand thread.
Technical characteristics 2RMG14B4SH1E2B
Current load on a single contact = 6 Ampere.
The total load on the connector = 20 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 15 mΩ.
Isolation resistance not less than 5000 Mom.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
The 2RMG14BPE4SH1E2 connector is connected to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM18BPE7SH1V1 or 2RMT18BPE7SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will not be shielded
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT18BPE7SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM18BPN7G1V1 or 2RMT18BPN7G1V1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “B2.1” according to GOST 15150-69 or “B” according to GOST “B 20.39.404-81”.
Technical characteristics 2RM18BPN7G1V1V:
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RMGP18B7SH1E2 connects to the following connectors:
Sealed connector – 2RМТ18КPE7G1V1V
Sealed connector – 2RMT18KPN7G1V1V
Sealed connector – 2RMT18KUN7G1V1V
Sealed connector – 2RMT18KUE7G1V1V
Sealed connector – 2RMT18KUN7G1V1LV
Sealed connector – 2RMT18KPE7G1V1LV
Sealed connector – 2RMT18KPN7G1V1LV
Sealed connector – 2RMT18KUE7G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP18B7SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “18” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “7” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP18B7SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2PMT14KU4G1V1LV connects to the following connectors:
Sealed connector 2RMGP14B4Sh1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMT14KUN4G1V1LV connector is connected to the following connectors:
Sealed connector 2RMGP14B4SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14KU4G1V1V connects to the following connectors:
2RMT14B4Sh1V1V – plug forks
2RMT14BPN4Sh1V1V – plug forks
2RMT14BPE4Sh1V1V – block plug
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14KPE4G1V1LV connects to the following connectors:
Sealed connector 2RMGP14B4SH1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMGP14B4SH1E2 connector is connected to the following connectors:
Sealed connector – 2RMT14KPE4G1V1V
Sealed connector – 2RMT14KPN4G1V1V
Sealed connector – 2RMT14KUN4G1V1V
Sealed connector – 2RMT14KUN4G1V1V
Sealed connector – 2RMT14KUN4G1V1LV
Sealed connector – 2RMT14KPE4G1V1LV
Sealed connector – 2RMT14KPN4G1V1LV
Sealed connector – 2RMT14KUE4G1V1LV
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMGP14B4SH1E2 general specifications.
1) 2RMGP or 2RMGPD – type of connector.
2) The number “14” is the nominal diameter of the connector.
3) The letter “B” type of housing – block.
4) The number “4” after the letter “B” denotes the number of contacts in the connector.
5) The letter “SH” – in the marking of the connector means that the plug is plugged (“SH” – abbreviated from the word “pin”).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1mm.
7) The letter “E” covering contacts – himnickel.
8) The number “2” at the end of the name of the connector indicates the heat resistance of contacts 1 – 100 ° C; 2 – 200 ° C.
Specifications 2RMGP14B4SH1E2
Current load on a single contact = 5 Amps.
The total load on the connector = 17 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
Or contact us, our CONTACTS.
Connector 2RM18BPN7SH1V1 or 2RMT18BPN7SH1V1V general technical characteristics.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “18” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “7” after the letter “B” denotes the number of contacts in the connector.
7) “SH” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climate performance “B2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT18BPN7SH1V1V
Current load on a single contact = 7 Amps.
The total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2RM and 2RMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM18B7G1V1 or 2RMT18B7G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RМТ18B7G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14B4G1V1B or 2RMT14B4G1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT14B4G1V1VB
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT14KPE4G1A1V is connected to the following connectors:
2RMT14B4Sh1A1V – block plug
2RMT14BPN4Sh1A1V – block plug
2RMT14BPE4Sh1A1V – plug forks
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14KPN4G1A1V connects to the following connectors:
2RMT14B4Sh1A1V – block plug
2RMT14BPN4Sh1A1V – block plug
2RMT14BPE4Sh1A1V – plug forks
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPE4G1V1, 2RMT14BPE4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPE4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
2RMT18B7G1V1V connector connects to the following connectors:
2RМТ18КPN7SH1V1V — plug cable
2RМТ18КPE7SH1V1V — plug cable
2RМТ18КUN7SH1V1V — plug cable
2RМТ18КUE7SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
Connector 2RM18B7G1V1 or 2RMT18B7G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18B7G1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM18B7SH1V1 or 2RMT18B7SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “18” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “7” after the letter “B” indicates the number of contacts in the connector.
5) Letter “SH” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT18B7SH1V1V
Current load per single contact = 7 Amps.
Total load on the connector = 40 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT14BPN4G1A1V connects to the following connectors:
2RMT14KPN4Sh1A1V – cable plug
2RMT14KPE4Sh1A1V – cable plug
2RMT14KUN4Sh1A1V – cable plug
2RMT14KUE4Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14B4G1A1V is connected to the following connectors:
2RMT14KPN4Sh1A1V – cable plug
2RMT14KPE4Sh1A1V – cable plug
2RMT14KUN4Sh1A1V – cable plug
2RMT14KUE4Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
The 2RMT14KUN4G1A1V connector is connected to the following connectors:
2RMT14B4Sh1A1V – block plug
2RMT14BPN4Sh1A1V – block plug
2RMT14BPE4Sh1A1V – plug forks
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RМ14KUN4SH1V1 or 2RМТ14KUN4SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed.
2) Number “14” is the nominal diameter of connector.
3) Letter “K” — indicates that connector is of cable type (straight or angle body frame, it is impossible to fix on the panel).
4) Letter “U” means that a kind of nozzle is angular.
5) Letter “N” means that the nut on the nozzle will not be shielded.
6) Number “4” after the letter “V” indicates the number of contacts in the connector.
7) Letters “SH” indicate plug connector (“SH” is indication of plug).
8) Number “1” indicates that diameter of the contacts in this type of connector is 1 mm.
9) Letter “V” after the number indicates that the type of contact coating is silver.
10) Number “1” at the end of the connector’s name indicates that thermal resistance of contacts is 100°C.
11) Letter “V” at the end of the connector’s name indicates that connector is made according to the Standard of Climatic Performance “V2.1” according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) “20.39.404-81″.
Technical Specifications of 2RМТ14KUN4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT14KPN4G1V1V connects to the following connectors:
2RMT14B4Sh1V1V – plug forks
2RMT14BPN4Sh1V1V – plug forks
2RMT14BPE4Sh1V1V – block plug
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPE4G1A1, 2RMT14BPE4G1A1V is connected to the following connectors:
2RMT14KPN4Sh1A1V – cable plug
2RMT14KPE4Sh1A1V – cable plug
2RMT14KUN4Sh1A1V – cable plug
2RMT14KUE4Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14BPE4Sh1A1V is connected to the following connectors:
2RMT14KPN4G1A1V – cable socket
2RMT14KPE4G1A1V – cable socket
2RMT14KUN4G1A1V – cable socket
2RMT14KUE4G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14BPN4Sh1A1V connects to the following connectors:
2RMT14KPN4G1A1V – cable socket
2RMT14KPE4G1A1V – cable socket
2RMT14KUN4G1A1V – cable socket
2RMT14KUE4G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RМ14B4G1V1 or 2RМТ14B4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RМТ14B4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
2RMT14B4SH1V1V connector connects to the following connectors:
2RМТ14КPN4SH1V1V — plug cable
2RМТ14КPE4SH1V1V — plug cable
2RМТ14КUN4SH1V1V — plug cable
2RМТ14КUE4SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
2RMT14B4SH1V1V connector connects to the following connectors:
2RМТ14КPN4SH1V1V — plug cable
2RМТ14КPE4SH1V1V — plug cable
2RМТ14КUN4SH1V1V — plug cable
2RМТ14КUE4SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
Connector 2RMT14B4Sh1A1V is connected to the following connectors:
2RMT14KPN4G1A1V – cable socket
2RMT14KPE4G1A1V – cable socket
2RMT14KUN4G1A1V – cable socket
2RMT14KUE4G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT14B4G1A1VB connects to the following connectors:
2RMT14KPN4Sh1A1V – cable plug
2RMT14KPE4Sh1A1V – cable plug
2RMT14KUN4Sh1A1V – cable plug
2RMT14KUE4Sh1A1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
CONNECTOR 2RM14B4G1A1B or 2RMT14B4G1A1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT14B4G1A1VB
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14B4Sh1A1VB connects to the following connectors:
2RMT14KPN4G1A1V – cable socket
2RMT14KPE4G1A1V – cable socket
2RMT14KUN4G1A1V – cable socket
2RMT14KUE4G1A1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14B4SH1A1B or 2RMT14B4SH1A1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) The letter “Sh” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “A” after the number indicates the type of contact coating – gold.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT14B4SH1A1VB
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KU4G1A1LV connects to the following connectors:
Sealed connector 2RMGP14B4Sh1E2.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KUE4G1A1LV or 2RMT14KUE4G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with left-hand thread.
12) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUE4G1A1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT14KPE4G1A1LV connects to the following connectors:
Sealed connector 2RMGP14B4SH1E2
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14KUN4G1A1LV connects to the following connectors:
Sealed connector 2RMGP14B4SH1E2
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KUN4G1A1LV or 2RMT14KUN4G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUN4G1A1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPE4G1A1LV or 2RMT14KPE4G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPE4G1A1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV is connected to the following connector:
Sealed connector 2RMGP14B4SH1E2
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KPN4G1A1LV or 2RMT14KPN4G1A1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “4” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “V 20.39.404-81”.
Technical Specifications of 2RMT14KPN4G1A1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KUE4G1A1 or 2RMT14KUE4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUE4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KUE4SH1A1 or 2RMT14KUE4SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUE4SH1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KUN4G1A1 or 2RMT14KUN4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUN4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KUN4G1V1V connects to the following connectors:
2RMT14B4Sh1V1V – plug forks
2RMT14BPN4Sh1V1V – plug forks
2RMT14BPE4Sh1V1V – block plug
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RMT14KUN4Sh1A1V connects to the following connectors:
2RMT14B4G1A1V – block socket
2RMT14BPN4G1A1V – block socket
2RMT14BPE4G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KUN4Sh1A1 or 2RMT14KUN4Sh1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) The letter “Sh” – in the marking of the connector means that the plug is plugged (“Sh” – abbreviated from the word “pin”).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUN4Sh1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPE4G1A1 or 2RMT14KPE4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “A” after the number indicates the type of contact coating – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPE4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KPE4G1V1V connects to the following connectors:
2RMT14B4Sh1V1V – plug forks
2RMT14BPN4Sh1V1V – plug forks
2RMT14BPE4Sh1V1V – block plug
Sealed connector 2RMG14B4Sh1E2
Sealed connector 2RMG14B4Sh1E2B
Sealed connector 2RMG14BPN4Sh1E2
Sealed connector 2RMG14BPE4Sh1E2
The 2RMGP14B4Sh1E2 sealed-through connector also includes a 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV connector to this connector.
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT14KPE4Sh1A1V is connected to the following connectors:
2RMT14B4G1A1V – block socket
2RMT14BPN4G1A1V – block socket
2RMT14BPE4G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KPE4Sh1A1 or 2RMT14KPE4SH1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPE4SH1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KPE4Sh1V1V connects to the following connectors:
2RMT14B4G1V1V – block socket
2RMT14BPN4G1V1V – block socket
2RMT14BPE4G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KPN4G1A1 or 2RMT14KPN4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPN4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RMT14KPN4Sh1A1V connects to the following connectors:
2RMT14B4G1A1V – block socket
2RMT14BPN4G1A1V – block socket
2RMT14BPE4G1A1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KPN4Sh1A1, 2RMT14KPN4Sh1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) The number “4” after the letter “B” denotes the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPN4Sh1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KPN4Sh1V1V connects to the following connectors:
2RMT14B4G1V1V – block socket
2RMT14BPN4G1V1V – block socket
2RMT14BPE4G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPE4G1A1 or 2RMT14BPE4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “4” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPE4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14BPE4G1V1, 2RMT14BPE4G1V1V connects to the following connectors:
2RMT14KPN4Sh1V1V – cable plug
2RMT14KPE4SH1V1V – cable plug
2RMT14KUN4Sh1V1V – cable plug
2RMT14KUE4Sh1V1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPE4Sh1A1 or 2RMT14BPE4Sh1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPE4Sh1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14BPE4Sh1V1V connects to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPN4G1A1 or 2RMT14BPN4G1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPN4G1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14BPN4G1V1V connects to the following connectors:
2RMT14KPN4Sh1V1V – cable plug
2RMT14KPE4SH1V1V – cable plug
2RMT14KUN4Sh1V1V – cable plug
2RMT14KUE4Sh1V1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT14BPN4Sh1V1V connects to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14BPN4Sh1A1 or 2RMT14BPN4Sh1A1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “A” after the number indicates the type of contact coverage – gold.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT14BPN4Sh1A1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
2RМТ14B4G1V1V connector connects to the following connectors:
2RМТ14КPN4SH1V1V — plug cable
2RМТ14КPE4SH1V1V — plug cable
2RМТ14КUN4SH1V1V — plug cable
2RМТ14КUE4SH1V1V — plug cable
You can buy the wire for soldering connectors BPVL, Spwle, PTL-200 and Ptle-200.
Connector 2RM14B4G1A1 or 2RMT14B4G1A1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “14” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) The number “4” after the letter “B” denotes the number of contacts in the connector.
5) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – shortened from the word “socket” socket).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
7) The letter “A” after the number indicates the type of contact coverage – gold.
8) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
9) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Specifications 2RMT14B4G1A1V
The current load on a single contact = 8 Ampere.
The total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM14B4Sh1A1 or 2RMT14B4Sh1A1V general specifications.
1) 2RM or 2RMT – type of connector. 2RM – not sealed, 2RMT – not sealed tropikoustoychiv.
2) The number “14” is the nominal diameter of the connector.
3) “B” – indicates that the connector is block (instrument – bolted to the device).
4) The next digit “4” indicates the number of contacts.
5) The letter “SH” – in the marking of the connector indicates that the connector plug (“Sh” – abbreviated from the word pin).
6) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
7) The letter “A” after the number indicates the type of contact coverage – gold.
8) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
9) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT14B4Sh1A1V
The current load on a single contact = 8 Ampere.
The total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and information about the connector, you can look in the 2PM and 2RMT catalog.
Or contact us, our CONTACTS.
Connector 2PMT14B4G1V1VB connects to the following connectors:
2RMT14KPN4Sh1V1V – cable plug
2RMT14KPE4SH1V1V – cable plug
2RMT14KUN4Sh1V1V – cable plug
2RMT14KUE4Sh1V1V – cable plug
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PMT14B4Sh1V1VB connects to the following connectors:
2RMT14KPN4G1V1V – cable socket
2RMT14KPE4G1V1V – cable socket
2RMT14KUN4G1V1V – cable socket
2RMT14KUE4G1V1V – cable socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14B4SH1V1V or 2RMT14B4SH1V1VB General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) The letter “Sh” – in the marking of the connector indicates that the connector plug (“W” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
10) “B” – body block (instrument) without left thread.
Technical Specifications of 2RMT14B4SH1V1VB
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KUE4G1V1LV, 2RMT14KUE4G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT14KUE4G1V1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KUN4G1V1LV or 2RMT14KUN4G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
12) The letter “L” connector with the left thread.
13) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT14KUN4G1V1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPE4G1V1LV or 2RMT14KPE4G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) Letter “G” — in the name of connector indicates the socket (“G” means socket).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) The letter “L” connector with the left thread.
10) The letter “V” at the end of the connector name indicates that the connector is manufactured according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT14KPE4G1V1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) The letter “L” connector with the left thread.
12) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical Specifications of 2RMT14KPN4G1V1LV
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPN4G1V1LV or 2RMT14KPN4G1V1LV is connected to the following connector:
Sealed connector 2RMGP14B4SH1E2
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KUE4G1V1, 2RMT14KUE4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUE4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KUE4SH1V1V connects to the following connectors:
2RMT14B4G1V1V – block socket
2RMT14BPN4G1V1V – block socket
2RMT14BPE4G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2PM14KUE4SH1V1 or 2RMT14KUE4SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUE4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PM14KUN4G1V1 or 2RMT14KUN4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “U” – a type of corner pipe.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KUN4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2PMT14KUN4Sh1V1V connects to the following connectors:
2RMT14B4G1V1V – block socket
2RMT14BPN4G1V1V – block socket
2RMT14BPE4G1V1V – block socket
We can buy wire for soldering connectors BPVL, BPVLe, PTL-200 and PTLe-200.
Connector 2RM14KPE4G1V1 or 2RMT14KPE4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPE4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPE4Sh1V1 or 2RMT14KPE4Sh1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) The number “4” after the letter “B” denotes the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPE4Sh1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector RM14KPN4G1V1 or 2RMT14KPN4G1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) Letter “G” — in the name of connector indicates the socket (“G” means socket).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPN4G1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14KPN4Sh1V1, 2RMT14KPN4SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) “K” – indicates that the cable connector (body straight or angled, can not be fixed to the panel).
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14KPN4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14BPE4Sh1V1, 2RMT14BPE4Sh1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) “P” – a type of socket on the connector – straight.
5) “E” – the nut on the nozzle will be shielded.
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPE4Sh1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14BPN4G1V1 or 2RMT14BPN4G1V1V general specifications.
1) 2PM or 2PMT – type of connector. 2PM – not sealed, 2PMT – not sealed tropikoustoychiv.
2) The number “14” is the nominal diameter of the connector.
3) The letter “B” in the name of the connector indicates the type of housing “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) The number “4” after the letter “B” denotes the number of contacts in the connector.
7) The letter “G” – in the marking of the connector indicates that the socket is a socket (“G” – abbreviated from the word “socket” socket).
8) The number “1” = indicates the diameter of the contacts in this type of connector = 1 mm.
9) The letter “V” after the number indicates the type of contact coating – silver.
10) The number “1” at the end of the name of the connector indicates the heat resistance of the contacts = 100 ° C.
11) The letter “V” at the end of the connector name indicates that the connector is made according to the standard of climatic performance “V2.1” according to GOST 15150-69 or “V” according to GOST “B 20.39.404-81”.
Technical characteristics 2RMT14BPN4G1V1V
The current load on a single contact = 8 Ampere.
The total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mΩ.
The capacitance between the contacts is not more than 6 pF.
Isolation resistance not less than 5000 Mom.
Insulation strength at maximum operating voltage of 560 Volts = 1850
Volt. With a pressure of 399.96 Pa (3 mm Hg) = 350 Volts.
Minimum operating time = 1,000 hours.
The number of joints – dismemberment is 500 times.
The minimum shelf life is 15 years from the production date.
For more detailed specifications and connector information, look at 2PM and 2PMT.
catalog. Or contact us, our CONTACTS.
Connector 2RM14BPN4Sh1V1, 2RMT14BPN4SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) “P” – a type of socket on the connector – straight.
5) “N” – the nut on the nozzle will not be shielded
6) Number “4” after the letter “B” indicates the number of contacts in the connector.
7) “Sh” – indicates that the plug connector (“Sh” – abbreviated from the word pin).
8) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
9) Letter “V” after the number indicates the type of contact coating – silver.
10) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
11) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14BPN4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
Connector 2RM14B4SH1V1 or 2RMT14B4SH1V1V General specifications.
1) 2RМ or 2RМТ – type connector. 2RМ – sealed, 2RМТ – not sealed, suitable for tropics.
2) Number “14” is the nominal diameter of connector.
3) Letter “B” in the name of connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) The letter “SH” – in marking of a connector designates that a plug connector (SH – it is reduced from the word “pin”).
6) Number “1” – indicates the diameter of the contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the Standard of Climatic Performance “V2.1 “according to State Standard (GOST) 15150-69 or “V” according to State Standard (GOST) B 20.39.404-81″.
Technical Specifications of 2RMT14B4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mW.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850
Voltage at a pressure of 399,96 PA (3 mm. Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of connections and disconnections is 500 times.
Minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ directory.
Or contact us, our CONTACTS.
General technical specifications of Connector 2RM14B4SH1V1 or 2RMT14B4SH1V1V
1) 2RМ or 2RМТ – type connector plug. 2RМ – sealed, 2RМТ – not sealed tropic resistant.
2) Number “14” – the nominal diameter of the connector.
3) Letter “B” in the name of the connector indicates the type of body frame “Block”.
4) Number “4” after the letter “B” indicates the number of contacts in the connector.
5) “SH” indicates connector plug.
6) Number “1” = indicates the diameter of contacts in this type of connector = 1 mm.
7) Letter “V” after the number indicates the type of contact coating – silver.
8) Number “1” at the end of the connector’s name indicates the thermal resistance of contacts = 100°C.
9) Letter “V” at the end of the connector’s name indicates that the connector is made according to the standard of climatic performance “V2.1 “according to State Standard GOST 15150-69 or “V” according to State Standard GOST “B 20.39.404-81”.
Specifications 2RМТ14B4SH1V1V
Current load per single contact = 8 Amps.
Total load on the connector = 27 Amps.
Maximum operating voltage = 560 Volts
Contact resistance ø 1 mm = 5 mOhm.
Capacity between the contacts is not more than 6 pF.
Insulation resistance is not less than 5000 MOhm.
Dielectric strength at the maximum operating voltage of 560 Volts = 1850 Volts. At a pressure of 399.96 PA (3 mm Hg) = 350 Volts.
Minimum operating time = 1000 hours.
Number of mating and unmating is equal to 500 times.
The minimum storage period is 15 years from the date of production.
More detailed specifications and connector information you can look in 2RМ and 2RМТ catalogue. Or feel free to contact us, our CONTACTS.
2RМТ14B4SH1V1v connector connects to the following connectors:
2RМТ14КPN4G1V1V – cable socket
2RМТ14КPE4G1V1V – cable socket
2RМТ14КUN4G1V1V – cable socket
2RМТ14КUE4G1V1V – cable socket
You can buy the wire for soldering connectors BPVL, BPVLe, PTL-200 and Ptle-200.
