CONNECTOR SHR12SK1EG1 CABLE SOCKET
Socket SHR12SK1EG1 cable socket is intended for use in AC and DC electric circuits. The connectors are made of two parts: plug and socket. They сan be block or cable. The block part of the product can be with a straight or angled tube; variations without a tube are also possible. Block (instrument) connectors with screws are fixed to the product. It is important to know that a cable plug / socket can only be coupled with a block (instrument) plug /socket.
For example, SHR12P1NG2 cable plug connects to SHR12PK1NG2 socket (block, instrument), etc.
Cable SHR plug cannot connect to a cable SHR socket.
Connectors are used for electronic equipment for various purposes. Shielded and
unshielded cable is used for their installation. The design contains up to 50 contacts, the
diameter of which can be from 1.5 mm up to 9.0 mm.
SHR12SK1EG1 has a combination of contacts 1 = 1.5 mm. Their surface is coated with
silver, increasing the reliability and quality of the radio components. The temperature
operating mode, according to the standard ОСТ V 11 0121-91 / GЕО.364.107 ТU, is -
ambient temperature, ° С from minus 60 to plus 60.
Also, the SHR connector series is available BRO.364.028 ТU in nickel surface. For example, SHR12SK1EG1N
cable socket. It is more resistant to temperature conditions, ° C from minus 60 to plus 120.
Weight SHR12SK1EG1 cable outlet does not exceed 30 grams. According to BRO.364.107
TU, the resistance for the SHR, depending on the diameter:
1.5 mm - not more than 2.5 mOhm;
2.5 mm - not more than 1.0 mOhm;
3.5 mm - not more than 0.75 mOhm.
The decoding of the connector markings is given in the “Technical Specifications” section.
These connectors are made to established standards. Their reliability has been verified
over the years.

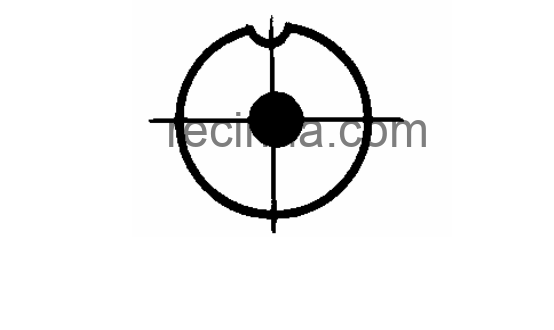

Sample SHR12SK1EG1 you can see in the photo.
